qj-srv250

QJ SRV-250

size and mass

• length : 2110mm
• width : 850mm
• height : 1100mm
• wheel-base : 1400mm
• curb weight : 167kg

engine

• type : 2v58MM-A, double cylinder V-Twin,8V
• bore x stroke : 58.0mm x 47.2mm
• displacement : 249cc calculator
• maximum power : 20.5kW/9000rpm
• maximum torque : 23.0Nm/5000rpm
• horse power : 27.5Hp at 9000rpm
• ignition mode : ECU electronic control ignition
• compression ratio : 10.3:1
• starting mode : electric starting

schematic diagram

• complete detail

manual

• official manual

top speed

• 130-150kmph depend on payload
• 150kmph with payload 92kg (after 1st service)

brake

• front braking mode : manual disc brake
• rear braking mode : pedal disc brake

abs

• why require abs on bike?

brake fluid

uses DOT4 brake fluid

fuel

• fuel tank : 13.5+-0.5L
• fuel type : regular unleaded gasoline only
• some owner reported 12 sen per km with Ron97 and if Ron95 7sen per km
• some owner reported 358.1km fuel with 19MYR.

tyre front

• 120/80-16
• 220+-10kpa
• tubeless

tyre rear

• 150/80-15
• 250+-10kpa
• tubeless
• cst
• bridgestone

service center

• mforce

cost

• first service at MForce RM145.20
• first service at MForce RM145.20
• first service at KST RM151.20
• sprocket price at MForce RM148.10
• second service at sim motors electric RM210

engine (black) oil

• engine oil capacity is about 1.5L
• 1.1L (no oil filter is replaced)
• 1.3L (oil filter is replaced at the same time)
• 15w-50
• PJ1 Fully Synthetic Engine Oil 15w50
• MOTUL 4T 7100 FULLY Synthetic Ester

oil filter

• Qianjiang Flash 300 Oil Filter Grid QJ300-12 300

air filter

• video on how to change to transparent air filter

spark plug

model : CR8E

coolant

model : FD-2

clutch

• video on how to change to transparent clutch cover

sidebag / box

• sidebag and backrest installation video
• sidebag installation video

backrest

• backrest installation video
• backrest installation video

protection bar

• protection bar installation video
• protection bar installation video
• protection bar installation video

body armor

• CE Rating
• sample body armor

pro

• acceleration is powercharge!
• comfortable in maneuvers left and right
• some of the screw applied with glue to tighthen it, that’s very nice!

con

• missing screw (bad assembly and QC at penang)
• passenger right footrest location too low, same level as the exhaust, should higher than the exhaust
• manual never specify coolant require how many litre

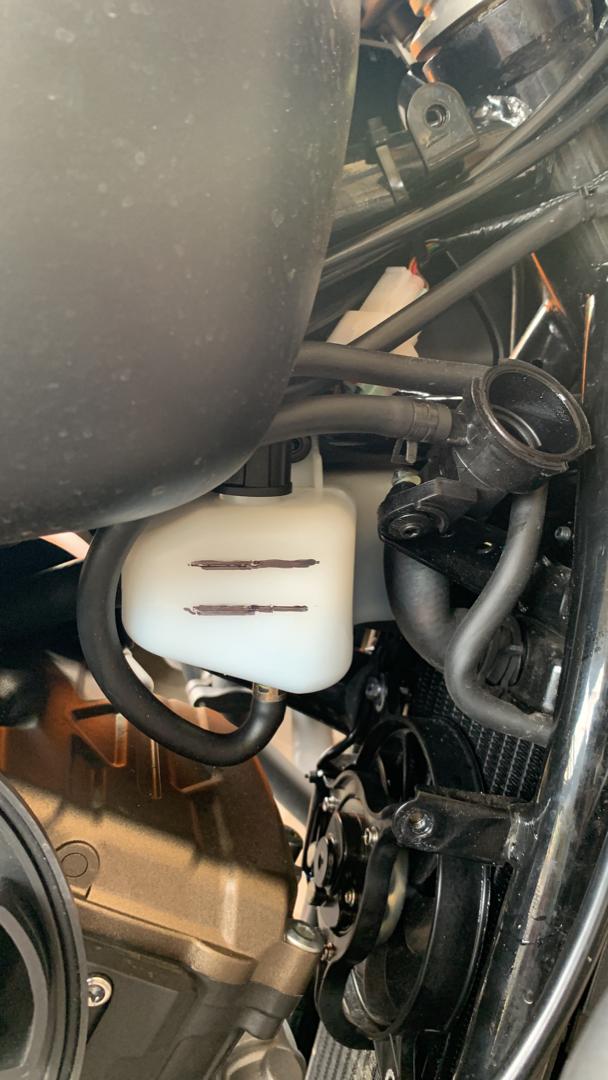

• radiator expansion tank not transparent, it should be, see here
• wire touch the top of the engine
• incomplete spanner set, the pedal screw, suggest get from mr diy complete ellenki and star wrench set
• owner reported two gas tubes connection not tight enough and came off after high speed ride. The loose connection is located at the left box and inner connection at point2 and point10. BAD ASSEMBLY and QC at penang factory!

tuning

• not sure dynojet, supertuner or master mst but can tune such that to increase the horsepower.

misc

• if travelling across country, need to bring proof of bike ownership and insurance because require need to buy extra insurance during entering to another country.
